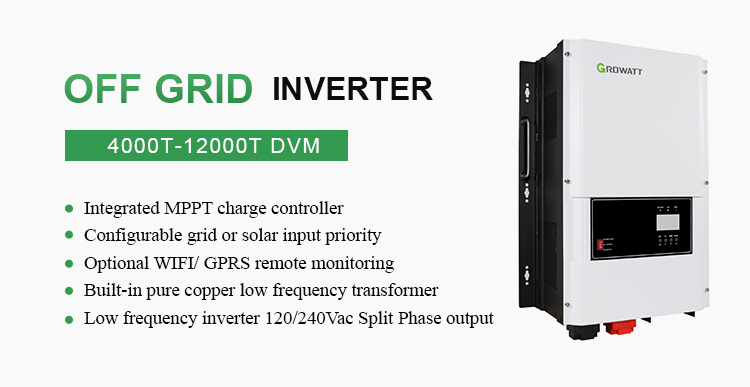

Growatt SPF 5000 SPF 6000 10Kw 12Kw Off Grid Split Phase System Solar PV Inverter Price With Lithium Battery
|
Datasheet
|
SPF 4000T DVM
|
SPF 5000T DVM
|
SPF 6000T DVM
|
SPF 8000T DVM
|
SPF 10000T DVM
|
SPF 12000T DVM
|
|
Battery Voltage
|
48DVC
|
|||||
|
Battery Type
|
Lithium/Lead-acid
|
|||||
|
INVERTER OUTPUT
|
||||||
|
Rated Power
|
4KW
|
5KW
|
6KW
|
8KW
|
10KW
|
12KW
|
|
Surge Rating
|
12KW
|
15KW
|
18KW
|
24KW
|
30KW
|
36KW
|
|
Waveform
|
Pure sine wave/same as input(bypass mode)
|
|||||
|
Nominal Output Voltage RMS
|
104-110-115-120/208-220-230-240VAC(optional)
|
|||||
|
Output Frequency
|
50Hz/60Hz+/-0.3Hz
|
|||||
|
Inverter Efficiency(Peak)
|
>85%
|
|||||
|
Transfer Time
|
10ms(max)
|
|||||
|
SOLAR CHARGER
|
||||||
|
Maximum PV Charge Current
|
80A
|
120A
|
||||
|
Maximum PV Array Power
|
5000W
|
7000W
|
||||
|
Number of independent MPP trackers/string per MPP tracker
|
1/1
|
2/1
|
||||
|
MPPT Range@Operating Voltage(VDC)
|
60~145VDC
|
60~145VDC
|
||||
|
Maximum PV Array Open Circuit Voltage
|
150VDC
|
150VDC
|
||||
|
Maximum Efficiency
|
>98%
|
>98%
|
||||
|
AC INPUT
|
||||||
|
Voltage
|
240VAC
|
|||||
|
Selectable Voltage Range
|
184~272VAC(UPS);154~272VAC(APL)
|
|||||
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|||||
|
Max.Charging Current
|
40A
|
50A
|
60A
|
70A
|
80A
|
100A
|
|
MECHANICAL SPECIFICATIONS
|
||||||
|
Protection Degree
|
IP20
|
|||||
|
Dimensions(W/H/D)
|
360/540/218mm
|
360/540/218mm
|
360/540/218mm
|
380/650/225mm
|
380/650/225mm
|
380/650/225mm
|
|
Weight
|
42kg
|
47kg
|
52kg
|
64kg
|
66kg
|
75kg
|
|
OPERATING ENVIRONMENT
|
||||||
|
Operation Temperature Range
|
0°C to 45°C
|
|||||
