Growatt Off Grid Inverter 3.5kw 5kw Solar Inverter MPPT 5KW 5.5KW Off Grid Inverter SPF 5000ES
|
Datasheet
|
SPF3500ES
|
SPF5000ES
|
|
Battery Voltage
|
48VDC
|
|
|
Battery Type
|
Lithium/Lead-acid
|
|
|
INVERTER OUTPUT
|
||
|
Rated Power
|
3500VA/ 3500W
|
5000VA/ 5000W
|
|
Parallel Capability
|
Yes, 6 units maximum
|
|
|
AC Voltage Regulation (Battery Mode)
|
230VAC ± 5% @ 50/60Hz
|
|
|
Surge Power
|
7000VA
|
10000VA
|
|
Efficiency (Peak)
|
93%
|
|
|
Waveform
|
Pure sine wave
|
|
|
Transfer Time
|
10ms typical, 20ms Max
|
|
|
SOLAR CHARGER
|
||
|
Maximum PV Array Power
|
4500W
|
6000W
|
|
MPPT Range @ Operating Voltage
|
120VDC ~ 430VDC
|
|
|
Number of Independent MPP Trackers/ Strings Per MPP Tracker
|
1/1
|
|
|
Maximum PV Array Open Circuit Voltage
|
450VDC
|
|
|
Maximum Solar Charge Current
|
80A
|
100A
|
|
AC CHARGER
|
||
|
Charge Current
|
60A
|
80A
|
|
AC Input Voltage
|
230VDC
|
|
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers) ;
90-280 VAC (For Home Appliances) |
|
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|
|
PHYSICAL
|
||
|
Protection Degree
|
IP20
|
|
|

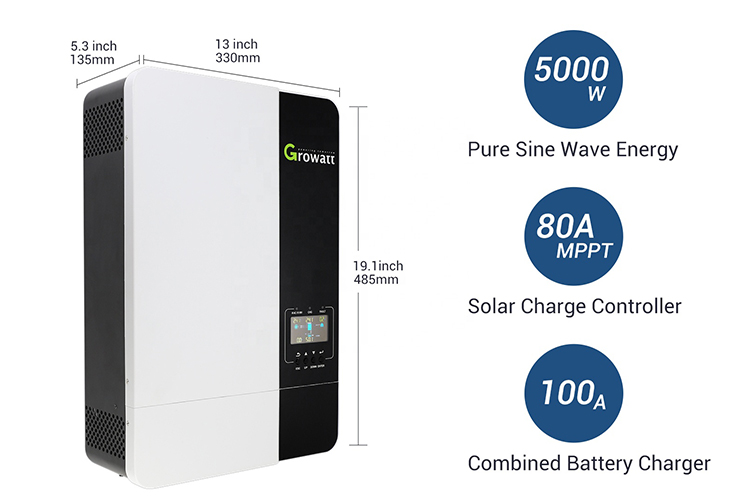

Dimension (W/H/D)
|
330/485/135mm
|
330/485/135mm
|
|
Net Weight
|
11.5kgs
|
12kgs
|
|
OPERATING ENVIRONMENT
|
||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
|
Altitude
|
＜2000m
|
|
|
Operating Temperature
|
0℃~55℃
|
|
|
Storage Temperature
|
-15℃~60℃
|
|
