Gorwatt SPH 5000 3KW 3.6KW 4KW 4.6KW 5KW 6KW Hybrid Solar Inverter for Solar Power System

Short Description:

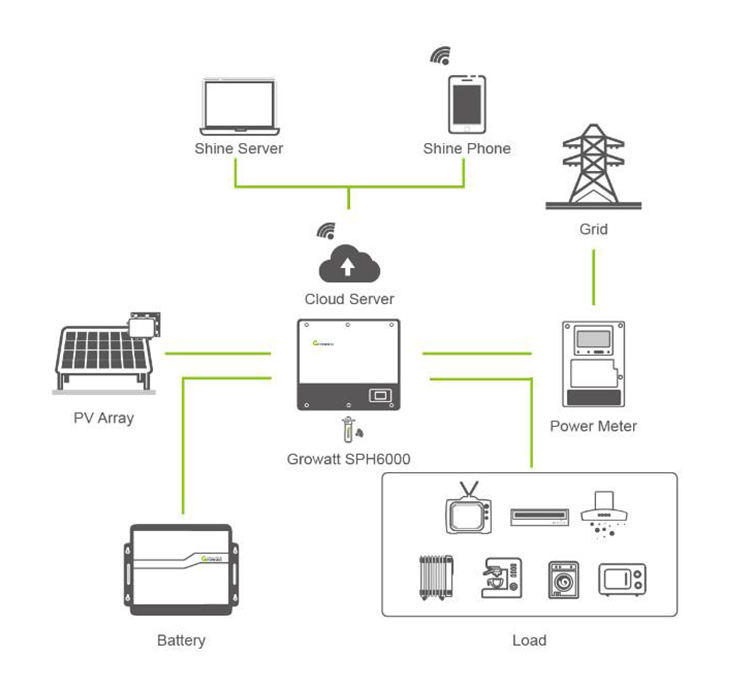

Hybrid solar inverter have function of both on grid inverter and off grid inverter,so hybrid solar system have the advantage of on grid and off grid solar system,all equipments are connected to hybrid solar inverter,so the hybrid inverter is the most important device for the system.

Place of Origin: Jiangsu, China

Brand Name: Growatt

Model Number: SPH3000-6000

Output Voltage: 230VAC

Output Frequency: 50Hz/60Hz

Output Type: Single

Size: 547/516/170mm

Type: DC/AC Inverters

Inverter Efficiency: 3KW-6KW

Certificate: CE/TUV, CE/TUV

Warranty: 5 Years, 5Years/10Years(opt)

Weight: 27KG

Product name: Growatt Hybrid Inverter

Application: Solar Power System Home

Inverter type: Hybrid Tie

Protection: IP65

Rated power: 3000W-6000W

Output waveform: Pure Sine Wave Output

Battery type: lithium /Lead-acid

Battery Voltage: 42~59V

Send email to us

Product Detail

Alibaba

Product Tags

Datasheet	SPH3000	SPH3600	SPH4000	SPH4600	SPH5000	SPH6000
DC input data
Max. recommended PV power	6600W	6600W	6600W	8000W	8000W	8000W
Start voltage	150V
Max. PV voltage	550V
PV voltage range	120V-550V
MPPT voltage range /nominal voltage	150V-550V /360V
Max. input current of tracker A/B	12A/12A
Number of MPP trackers / strings per MPP tracker	2/1
AC Output
Rated AC output power	3000W	3680W	4000W	4600W	4999W	6000W
Max. AC apparent power	3000VA	3680VA	4000VA	4600VA	5000VA	6000VA
Max. output current	16A	16A	22A	22A	22A	27A
Nominal AC output voltage	230V
Nominal grid frequency	50/60Hz
Power factor at rated power	1
THDI	<3%
AC output power(Backup)
Max. output power	3000W
Rated AC output voltage	230Vac
Rated AC output frequency	50/60Hz
Automatic switchover time	<0.5S
Battery data
Battery voltage range	42~59V
Max. charging voltage	58V
Max charging and discharging current	66A
Max charging and discharging power	3000W
Battery type	lithium /Lead-acid
Deep of discharging	80%DOD/50%DOD
Capacity of battery	3~12kWh
Efficiency
Max. efficiency	97.5%	97.5%	97.5%	97.6%	97.6%	97.7%
Euro European efficiency	97.0%	97.0%	97.0%	97.1%	97.1%	97.1%
MPPT efficiency	99.5%
Protection devices
DC switch	yes
DC reverse polarity protection	yes
Battery reverse protection	yes
Output over current protection	yes
Output over voltage protection	yes
Ground fault monitoring	yes
Grid monitoring	yes
Integrated all – pole sensitive leakage	yes
