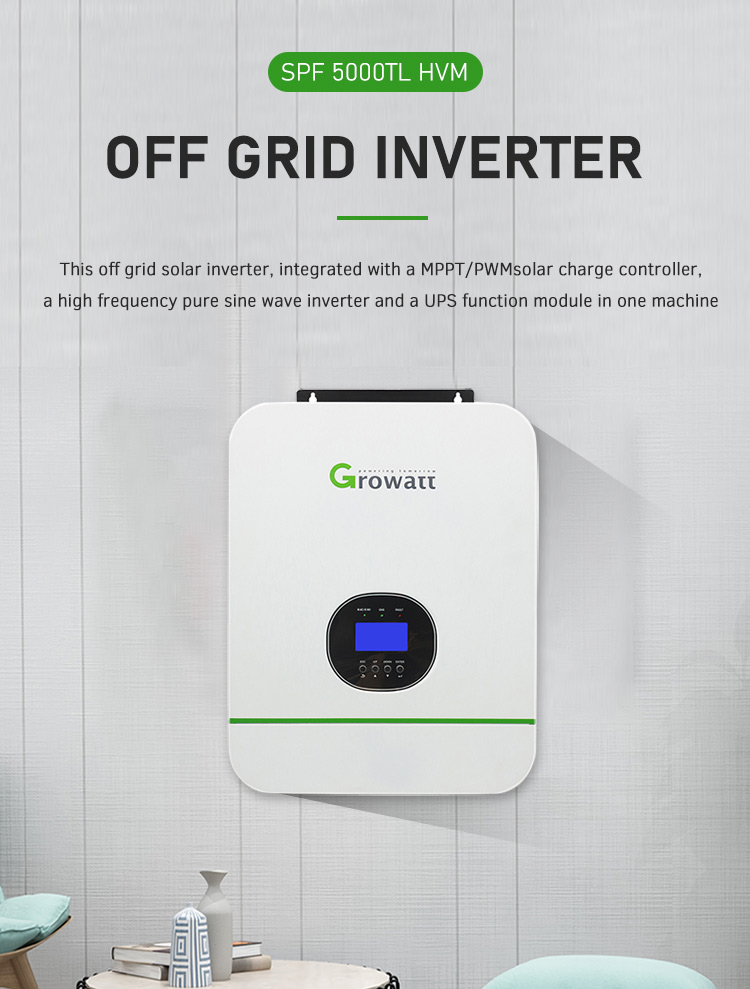

Growatt single phase 5kw solar inverter off grid SPF 5000TL HVM 5000 w 48v power inverter
|
Datasheet
|
SPF 2000TL-HVM-24
|
SPF3000TL-HVM-24
|
SPF 2000TL-HVM-48
|
SPF 3000TL
HVM-48
|
SPF 5000TL
HVM/HVM-P
|
|
Battery voltage
|
24V DC
|
48V DC
|
|||
|
Battery type
|
Lithium/Lead-acid
|
||||
|
INVERTER OUTPUT
|
|||||
|
Rated power
|
2000VA/2000W
|
3000VA/3000W
|
2000VA/2000W
|
3000VA/3000W
|
5000VA/5000
W
|
|
Paralell capability
|
No
|
NO/YES,
6units MAX
|
|||
|
Surge power
|
4000VA
|
6000VA
|
4000VA
|
6000VA
|
10000VA
|
|
Efficiency(peak)
|
93%
|
||||
|
Waveform
|
Pure sine wave
|
||||
|
Transfer time
|
10ms typical,20ms max
|
||||
|
SOLAR CHARGER
|
|||||
|
Maximum pv array power
|
1500W
|
1800W
|
4500W
|
||
|
MPPT range
|
30V-80V DC
|
60-115V DC
|
|||
|
Maximum pv array open circuit voltage
|
102V DC
|
145V DC
|
|||
|
Numbers of independent mppt trackers/strings per mppt tracker
|
1/1
|
||||
|
Maximum solar charge current
|
50A
|
30A
|
80A
|
||
|
Maximum efficiency
|
98%
|
||||
|
AC CHARGER
|
|||||
|
Charge Current
|
30A
|
15A
|
60A
|
||
|
AC Input Voltage
|
230 VAC
|
||||
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
|
||||
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
||||
|
PHYSICAL
|
|||||
|
Protection Degree
|
IP20
|
||||
|
Dimension (W/H/D)
|
315/400/130mm
|
350/455/130mm
|
|||
|
Net Weight (kgs)
|
8
|
8.5
|
8
|
8.5
|
11.5
|
|
OPERATING ENVIRONMENT
|
|||||
|
Humidity
|
5% to 95% Relative
Humidity(Non-condensing)
|
||||
|
Altitude
|
<2000m
|
||||
|
Operating Temperature
|
0°C – 55°C
|
||||
|
Storage Temperature
|
-15°C – 60°C
|
||||
