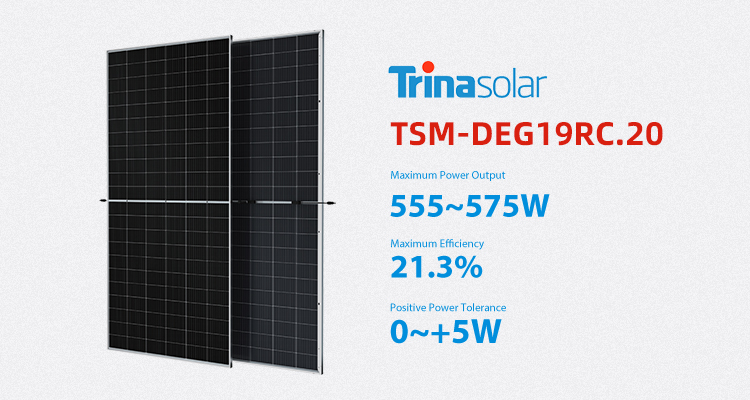

Trina Solar Vertex TSM-DEG19RC.20 Bifacial Dual Glass Monocrystalline Module 575W 132 Cells PV Solar Panels

Trina Solar Vertex TSM-DEG19RC.20 Bifacial Dual Glass Monocrystalline Module 575W 132 Cells PV Solar Panels Featured Image
  • Trina Solar Vertex TSM-DEG19RC.20 Bifacial Dual Glass Monocrystalline Module 575W 132 Cells PV Solar Panels
  • Trina Solar Vertex TSM-DEG19RC.20 Bifacial Dual Glass Monocrystalline Module 575W 132 Cells PV Solar Panels
  • Trina Solar Vertex TSM-DEG19RC.20 Bifacial Dual Glass Monocrystalline Module 575W 132 Cells PV Solar Panels

Short Description:

Compact size, small board type power up to 405W, high density module technology to achieve a maximum efficiency of 21.3%
Multi-Main-Barrier (MBB) technology is applied to improve optical utilization and reduce internal current loss

Lower temperature coefficient (-0.34%) and lower operating temperature for more power generation
  • Brand Name: Trina Solar
  • Model Number: TSM-DEG19RC.20 / TSM-DEG19R
  • Place of Origin: Jiangsu, China
  • Cell size: 182mmx210mm
  • Type: PERC, Half Cell, Bifacial, Double-glass
  • Panel Dimensions: 2384x1134x30 mm
  • Panel Efficiency: 21.3%
  • Certificate: IEC61215/IEC61730/IEC61701/IEC62716
  • Warranty: 25Year
  • Product weight(KG): 33.7kg(74.30 lb)
  • Front Glass: 2.0mm(0.08inches),High Transmission, AR Coated Hea
  • Encapsulant material: EVA/POE
  • Back Glass: 2.0mm(0.08inches), Heat Strengthened Glass
  • Frame: 30mm(1.18 inches) Anodized Aluminium Alloy
  • J-Box: IP 68 rated
  • Connector: MC4 EVO2/TS4*

    • Product Detail

    Alibaba

    Product Tags

    deg192deg193

    deg194

  • Previous:
  • Next:

    • Welcome to our Ali shop（https://yftechco.en.alibaba.com/productgrouplist-822775923/M6_166mm.html） for more products and reference prices.H31397bc4b8d642a9816786d6ff5da823Q
