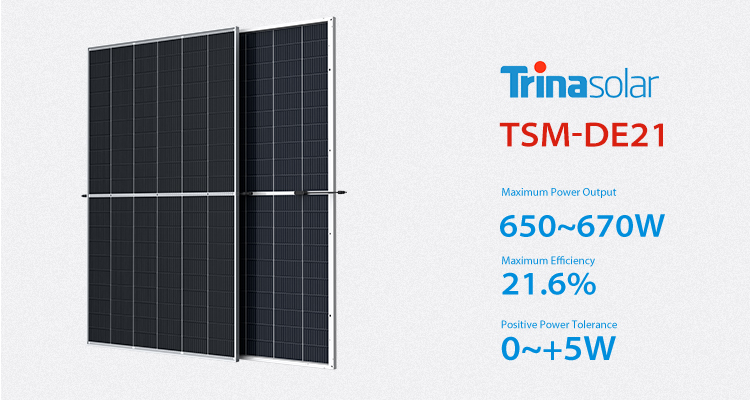

Trina 650w 660w 670w Vertex Backsheet Monocrystalline Module home solar panels bracket mounting power

Short Description:

➤Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time

➤Lowest guaranteed first yearand annual degradation;
➤Designed for compatibility with existing mainstream system components

  • Brand Name: trina solar
  • Model Number: TSM-DE21
  • Place of Origin: Jiangsu, China
  • Cell size: 210mmx210mm
  • Type: PERC, Half Cell
  • Panel Dimensions: 2384*1303*33 mm
  • Panel Efficiency: 21.6%
  • Certificate: TUV/CE
  • Warranty: 25 years
  • Weight: 33.3kg
  • Backsheet: White
  • Product name: Solar Panel Components
  • Encapsulant material: EVA/POE
  • Glass: 3.2mm
  • Solar Cells: Monocrystalline
  • J-Box: IP 68 rated
  • Cables: Photovoltaic Technology Cable 4.0mm2
  • Frame: 33mm
  • Product Detail

    Alibaba

    Product Tags

    de2111

    Electrical Characteristics
    Maximum Power(Pmax/W)
    650
    655
    660
    665
    670
    Voltage at Maximum Power(Vmp/V)
    37.4
    37.6
    37.8
    38.0
    38.2
    Current at Maximum Power(Imp/A)
    17.39
    17.43
    17.47
    17.51
    17.55
    Open Circuit Voltage(Voc/V)
    45.3
    45.5
    45.7
    45.9
    46.1
    Short Circuit Current(lsc/aA)
    18.44
    18.48
    18.53
    18.57
    18.62
    Module Efficiency(%)
    20.9
    21.1
    21.2
    21.4
    21.6

    ce
