N-type solar panels 630W photovoltaic solar module price

Short Description:

Essential details

Brand Name: JINKO
Model Number: Tiger Neo N-type 78HL4-(V) 610-630 Watt
Place of Origin: Jiangsu, China
Cell size: 210mmx210mm
No. of cells: 156(2*78)
Type: PERC, Half Cell, N-TYPE
Panel Dimensions: 2465×1134×35mm (97.05×44.65×1.38 inch)
Panel Efficiency: 22.54%
Certificate: TUV/CE/IEC/ISO/INMETRO
Warranty: 30 Year Linear Power Warranty
Solar cell: A-grade
Junction Box: IP68 Rated
Front Glass: 3.2mm,Anti-Reflection Coating,High Transmission, Low Iron, Tempered Glass
Output Cables: TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length
Maximum system Voltage: 1000V/1500V DC
Application: Home Commercial Solar System
Frame: Anodized Aluminium Alloy


Product Detail

Alibaba

Product Tags

Tiger Neo 78HC BIFACIAL MODULE WITH DUAL GLASS N-Type Positive power tolerance of 0~+3%

Hbea1753ca03c49fe80f4890cc00e6366F

What are N-type solar ?

An N-type solar cell consists of a thin p-type silicon (doped with boron) layer over a much thicker n-type silicon (doped with phosphorus) layer. Electrical contacts are applied to both sides. The p-side is the front side facing the sun. It is given an antireflective coating, over which is pasted a clear adhesive (for instance EVA) which holds the front protective glass layer. Currently most of the crystalline solar cells are p-type. This is because of a lower cost of production of p-type. The reasons are probably attributable to history of development of solar cells. But performance wise, n-type solar cells can give much better efficiency compared to p-type solar cells. Two main factors account for this. Firstly, p-type material has boron (trivalent) doping. In the presence of light and oxygen boron undergoes some undesirable action, which reduces efficiency of conversion. This is called Light Induced Degradation or LID.

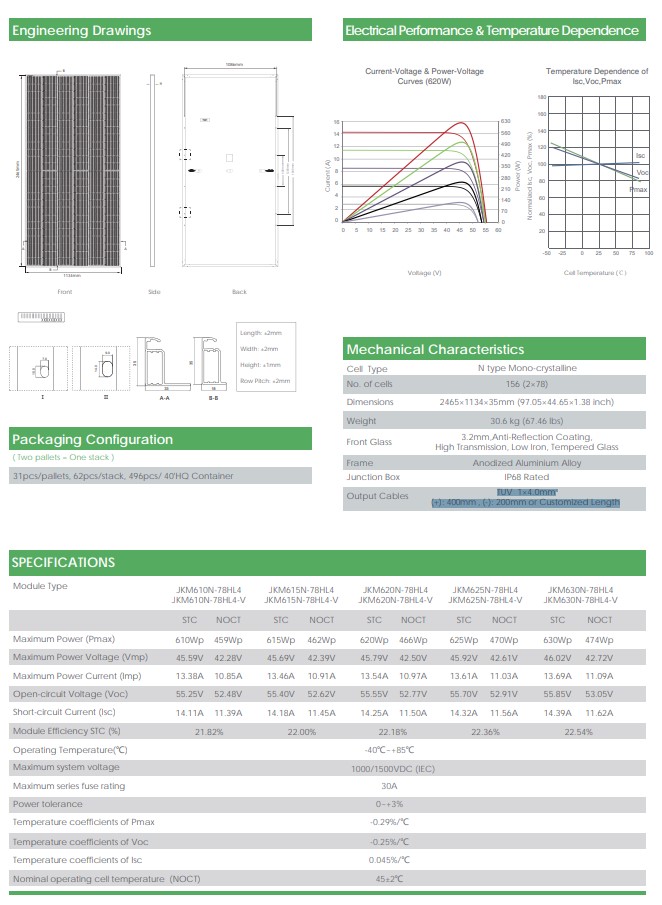

jkm610-630  2

KEY FEATURES

Multi Busbar Technology
Better light trapping and current collection to improve module power output and reliability.

Longer Life-time Power Yield
0.45% annual power degradation and 30 year linear power warranty.

PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

Low-light Performance
Advanced glass and cell surface textured design ensure excellent performance in low-light environment.

Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

Higher Power Output
Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR.

LINEAR PERFORMANCE WARRANTY

12 Year Product Warranty
30 Year Linear Power Warranty
0.45% Annual Degradation Over 30 years

Details

Glass
*Anti Reflective Glass*Self-cleaning function
*Module efficiency is increased by 2%

*Service life is as long as25years(30years optional)

*Translucency of normal luminance is increased by 2%

Solar Cell
* Anti-PID
* Appearance Consistency
* High Efficiency PV Cells

*Color sorting ensure consistent appearance on each module

Frame
* Conventional frame
* Seal-lip designglue injection
* Silver or black frames are optional

* Serrated-clip design tensile strength

*Boost bearing capability and prolong service life

Junction box
*Heat dissipation
*Long service life
*IP68 protection level

*Quality diode ensures module running safety

*Conventional standalone edition and engineering custom edition
