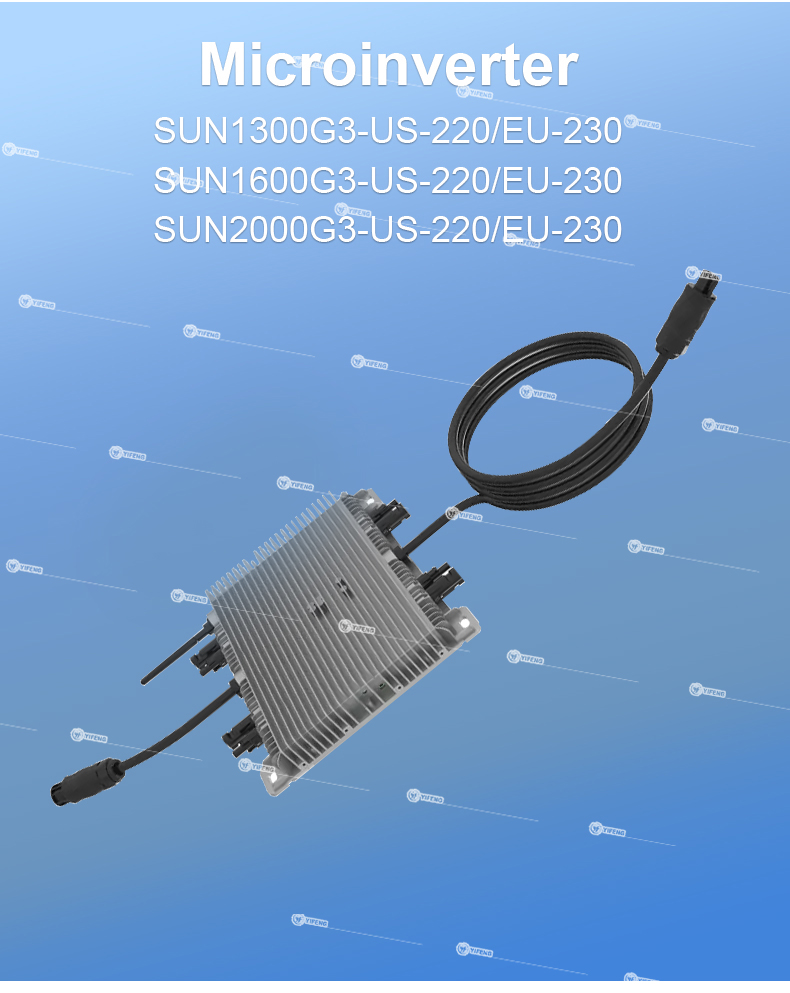

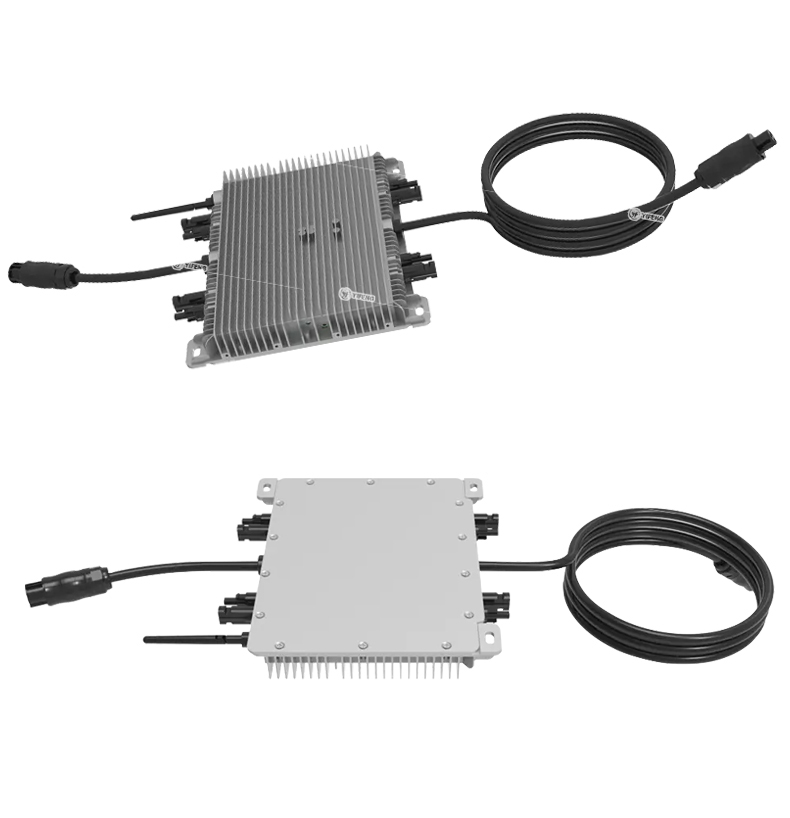

deye micro inverter SUN2000G3 -US-220 SUN2000G3 -EU-230 2000w 2000watt 2kw

Short Description:

1. Colorful touch LCD, IP65 protection degree

2. 6 time periods for battery charging/discharging

3. Max. charging/discharging current of 120A

4. Frequency droop control, Max.16pcs parallel

5. DC couple and AC couple to retrofit existing solar system

6. Support storing energy from diesel generator

7. 48V low voltage battery, safe and reliable

8. Unique Smart Load application and Grid peak shaving function

9. 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well


  • Place of Origin: Jiangsu, China
  • Network: SDK
  • Brand Name: deye
  • Model Number: SUN1300/1600/2000G3-US-220/EU-230
  • Type: DC/AC Inverters
  • Output Type: Single
  • Output Frequency: 50 Hz / 60 Hz
  • Size: 267W*300H*42D
  • Weight: 5.2
  • Certificate: UL 1741, IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3
  • Type: Microinverter
  • Cooling concept: Natural cooling
  • Product Detail

    Alibaba

    Product Tags

    4 5 6 7 8

    Effiffifficiency
    CEC Weighted Effiffifficiency
    95%
    Peak Inverter Effiffifficiency
    96.5%
    Static MPPT Effiffifficiency
    99%
    Night Time Power Consumption
    50mW
    Mechanical Data
    Ambient Temperature Range
    -40~65℃

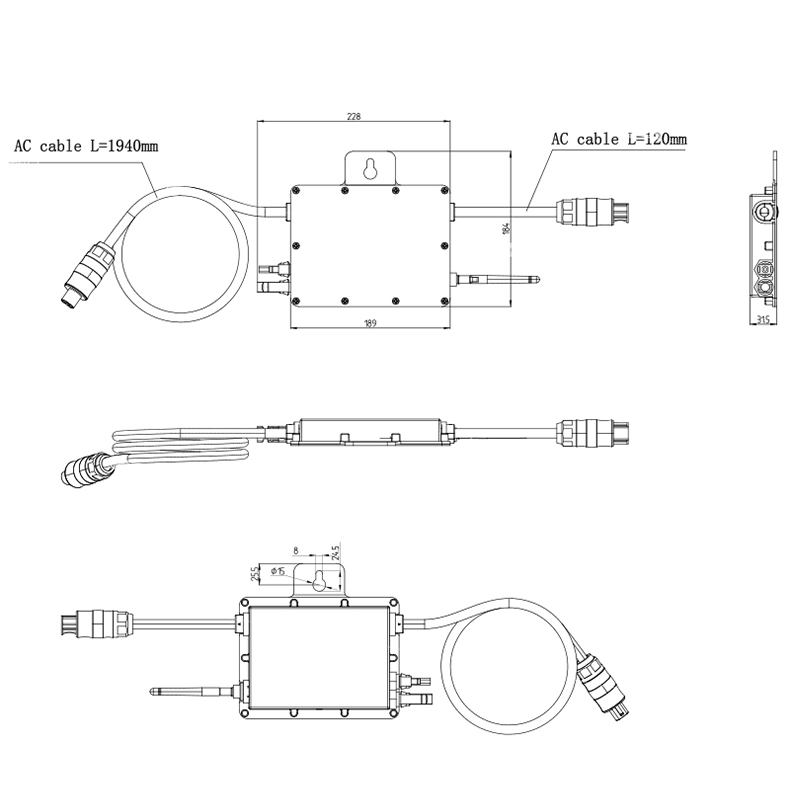

    Size (mm)
    267W×300H×42D (Without mounting bracket and cable)
    Weight (kg)
    5.2
    Cooling
    Natural cooling
    Enclosure Environmental Rating
    IP67
    Features
    Compatibility
    Compatible with 60~72 cell PV modules
    Communication
    Power line / WIFI / Zigbee
    Grid Connection Standard
    EN50549-1, VDE0126-1-1, VDE 4105, ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116,
    RD1699, UNE 206006 IN, UNE 206007-1 IN, IEEE1547
    Safety EMC / Standard
    UL 1741, IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-2, IEC61000-3-3
    Warranty
    10 years
