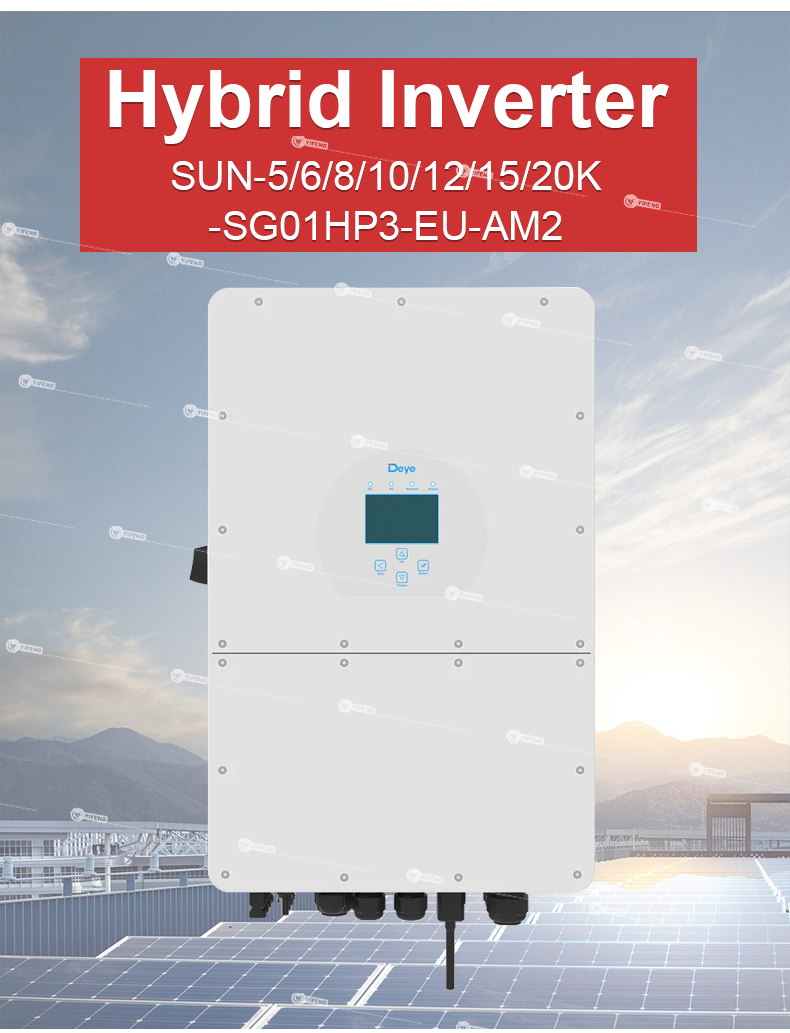

12KW Deye 5KW 6KW 8KW Hybrid Inverter 8 KW Solar Hybrid Grid Tie Inverter Power Charger System Three Phase 8000W

Short Description:

1. Colorful touch LCD, IP65 protection degree

2. 6 time periods for battery charging/discharging

3. Max. charging/discharging current of 120A

4. Frequency droop control, Max.16pcs parallel

5. DC couple and AC couple to retrofit existing solar system

6. Support storing energy from diesel generator

7. 48V low voltage battery, safe and reliable

8. Unique Smart Load application and Grid peak shaving function

9. 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well


  • Output Type: Three Phase
  • Type: DC/AC Inverters
  • Inverter Efficiency: 99.90%
  • Place of Origin: Jiangsu, China
  • Brand Name: Deye
  • Model Number: SUN-5/6/8/10/12/15/20K-SG01HP3
  • Input Voltage: 1000V
  • Output Voltage: 3L/N/PE 220/380, 230/400Vac
  • Output Current: 7.6/7.3-30.4/29
  • Output Frequency: 50/60Hz
  • Size: 408W*638H*237D(mm)
  • Warranty: 5 Years
  • Weight: 30.5KG
  • Battery Type: Li-lon
