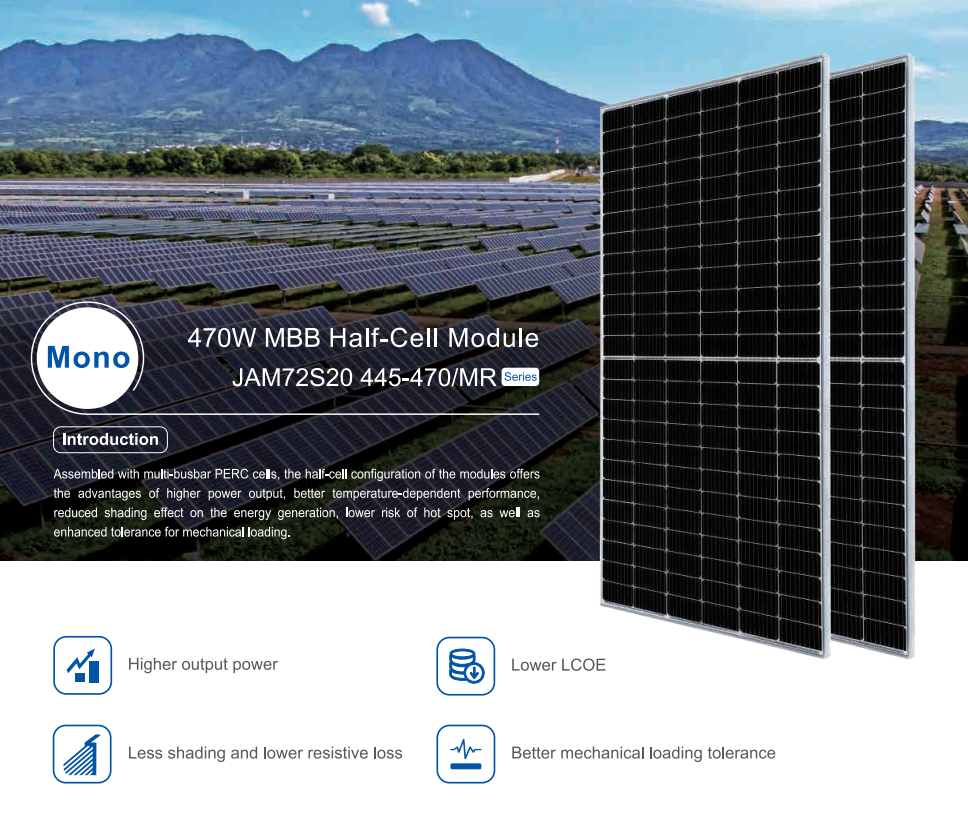

Solar Panels High Quality Jam72s20/mr 450 Watts Solar Panel Ja Solar Module 460w 470w
Specification
|
Number of Cells
|
144 Cells(6*24)
|
|||
|
Dimensions of Module L*W*H(MM)
|
2112±2mm*1052±2mm*35±1mm
|
|||
|
Weight(KG)
|
24.5kg
|
|||
|
Cell
|
Mono
|
|||
|
Frame
|
Silver,anodized aluminium alloy
|
|||
|
J-Box
|
IP68 Rated
|
|||
|
Cable
|
4.0mm²（IEC),12AWG(UL)
|
|||
|
Number of Diodes
|
3
|
|||
|
Connector
|
MC4-EVO2/QC4.10-35
|
|||
Electrical Specification(STC*)
|
Maximum Power—Pmax(W)
|
445
|
450
|
455
|
460
|
465
|
470
|
|
Open Circuit Voltage—Voc(V)
|
49.56
|
49.70
|
49.85
|
50.01
|
50.15
|
50.31
|
|
Maximum Power Voltage—Vmp(V)
|
41.21
|
41.52
|
41.82
|
42.13
|
42.43
|
42.69
|
|
Short Circuit Current—Isc(A)
|
11.32
|
11.36
|
11.41
|
11.45
|
11.49
|
11.53
|
|
Maximum Power Current—Imp(A)
|
10.80
|
10.84
|
10.88
|
10.92
|
10.96
|
11.01
|
|
Module Efficiency(%)
|
20.0
|
20.3
|
20.5
|
20.7
|
20.9
|
21.2
|
|
Power Output Tolerance(W)
|
0~+5
|
|||||
Electrical Specification(NOCT*)
|
Rated Max Power—Pmax(W)
|
336
|
340
|
344
|
348
|
352
|
355
|
|
Open Circuit Voltage—Voc(V)
|
46.65
|
46.90
|
47.15
|
47.38
|
47.61
|
47.84
|
|
Maximum Power Voltage—Vmp(V)
|
38.95
|
39.19
|
39.44
|
39.68
|
39.90
|
40.10
|
|
Short Circuit Current—Isc(A)
|
9.20
|
9.25
|
9.29
|
9.33
|
9.38
|
9.42
|
|
Maximum Power Current—Imp(A)
|
8.64
|
8.68
|
8.72
|
8.76
|
8.81
|
8.86
|
